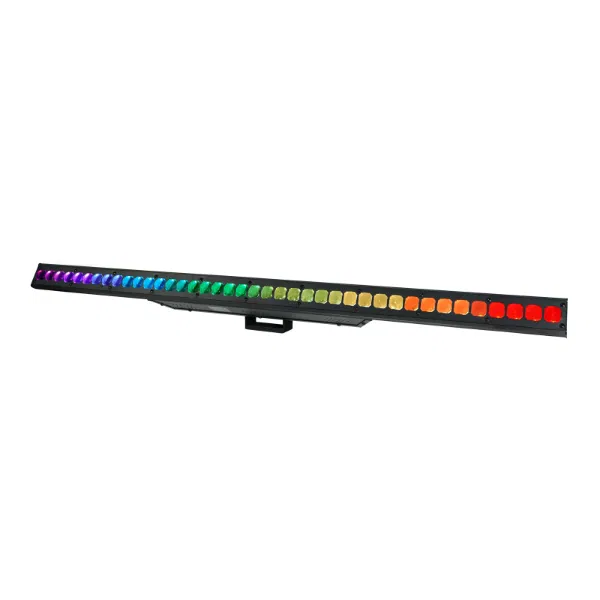

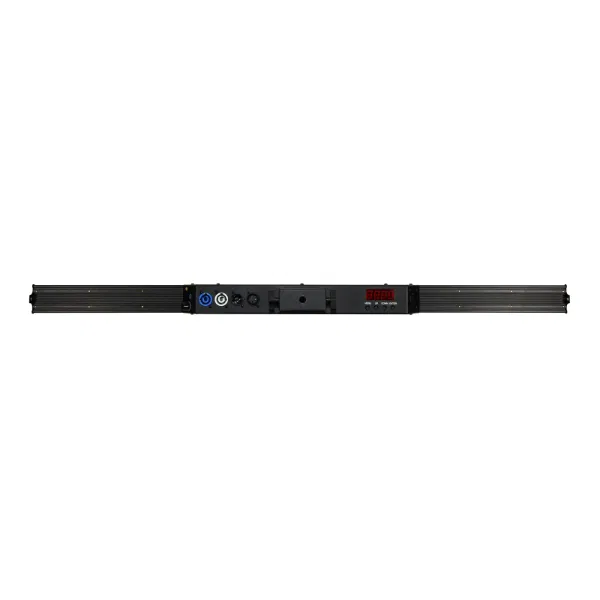

The Equinox PIXELpoint Batten is a slim, 1 m multi‑beam LED fixture packing 40 × 3 W 3‑in‑1 RGB LEDs into a neat metal housing. Each pixel can be addressed individually for super‑narrow 5° beams or fluid chase patterns, with a 4 kHz refresh rate and variable strobe. It supports 13 selectable DMX modes (3–121 channels) for full pixel mapping, plus static, auto, sound‑active and master/slave operation with 0–100 % dimming. Setup is via a four‑button menu and LED display, and PowerCON plus 3‑pin XLR in/out make power and data linking effortless.
